There are 64 soft registers. The soft DIO registers are internal variables and do not correspond to any externally generated or sensed hardware signals. These signals are provided as a programming convenience and are often used to implement simple semaphores between threads.
This panel displays the register states and allows you to toggle them.
| Digital Input/Output Overview | |
|---|---|
|

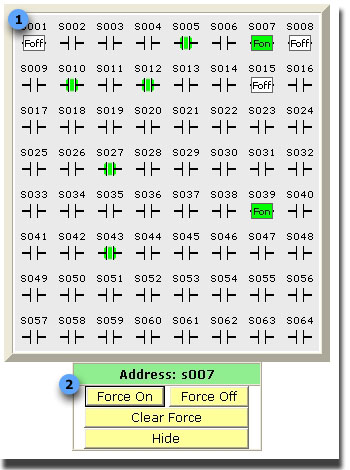

1. Internal Soft Register |
There are 64 internal soft registers that can be used by the application software. |
|
2. Force control panel |
This panel provides an interface to allow you to force a signal on or off. The forced signal will stay in effect until you clear the force condition or you re-boot the controller. To force a signal, click on the desired signal icon followed by one of the force buttons. |
