Method 1: Homing off the Negative Limit Switch

In this homing method, the initial direction of movement is left if the negative limit switch is inactive (logic low). The home position is at the first index pulse to the right of the position where the negative limit switch becomes inactive.

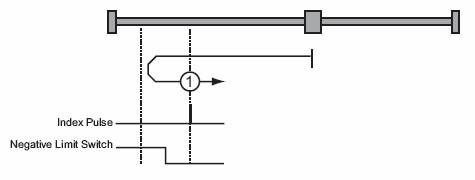

Figure 3: Homing Off the Negative Limit Switch
