Methods 33 to 34: Homing on the Index Pulse

In methods 33 or 34, the direction of homing is negative or positive respectively. The home position is at the index pulse found in the selected direction.

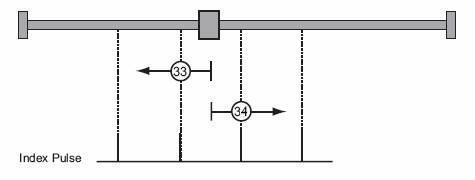

Figure 10: Homing on the Index Pulse
